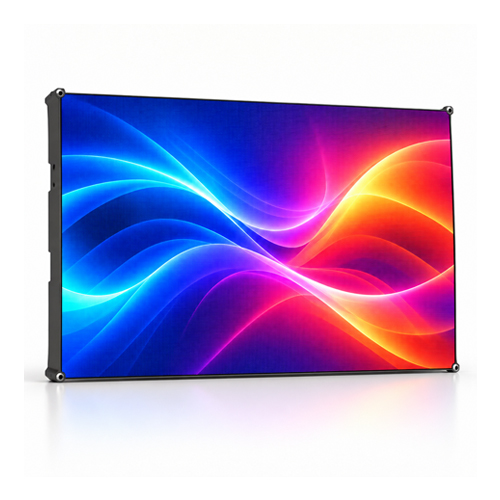

The Zenith is a premium indoor COB LED display engineered for environments where exceptional image quality, fine pixel pitch and long-term reliability matter.

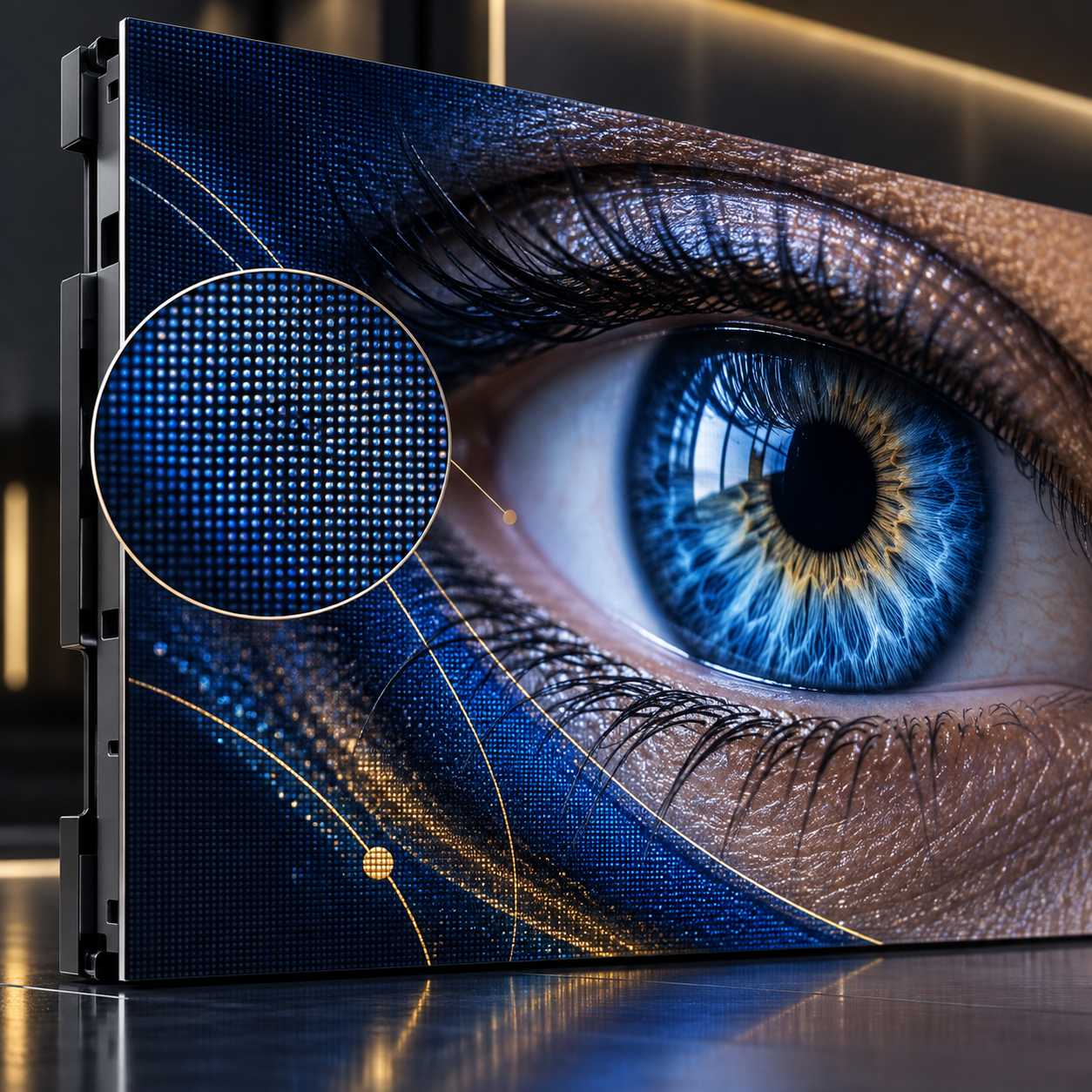

Built with advanced Chip-on-Board (COB) technology, Zenith delivers a refined, seamless visual surface with high contrast, excellent image uniformity and enhanced protection against everyday contact and impact.

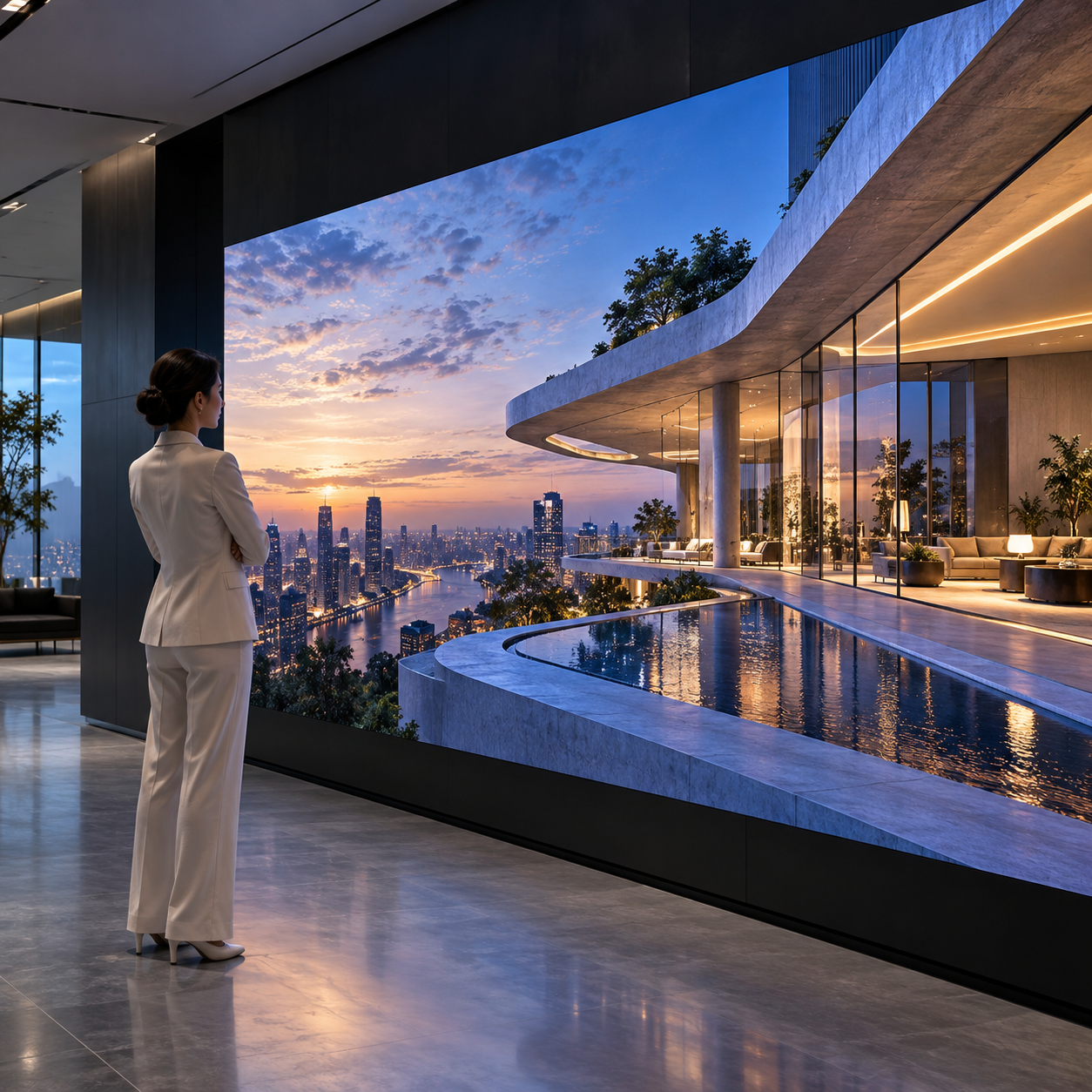

Designed for close-viewing environments, Zenith transforms corporate spaces, control rooms, boardrooms, broadcast studios, premium retail environments and turns your entertainment room into a private cinema without compromise.

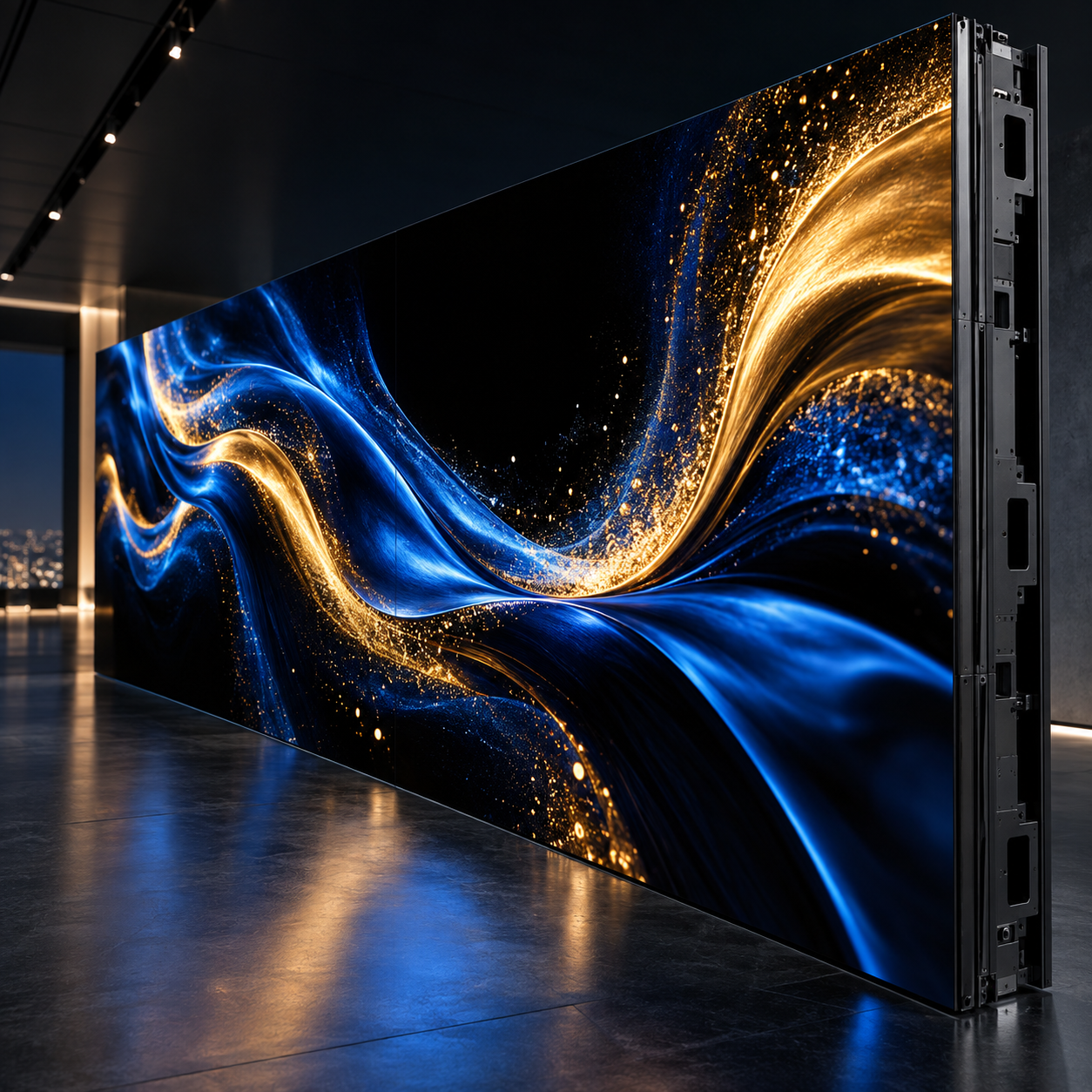

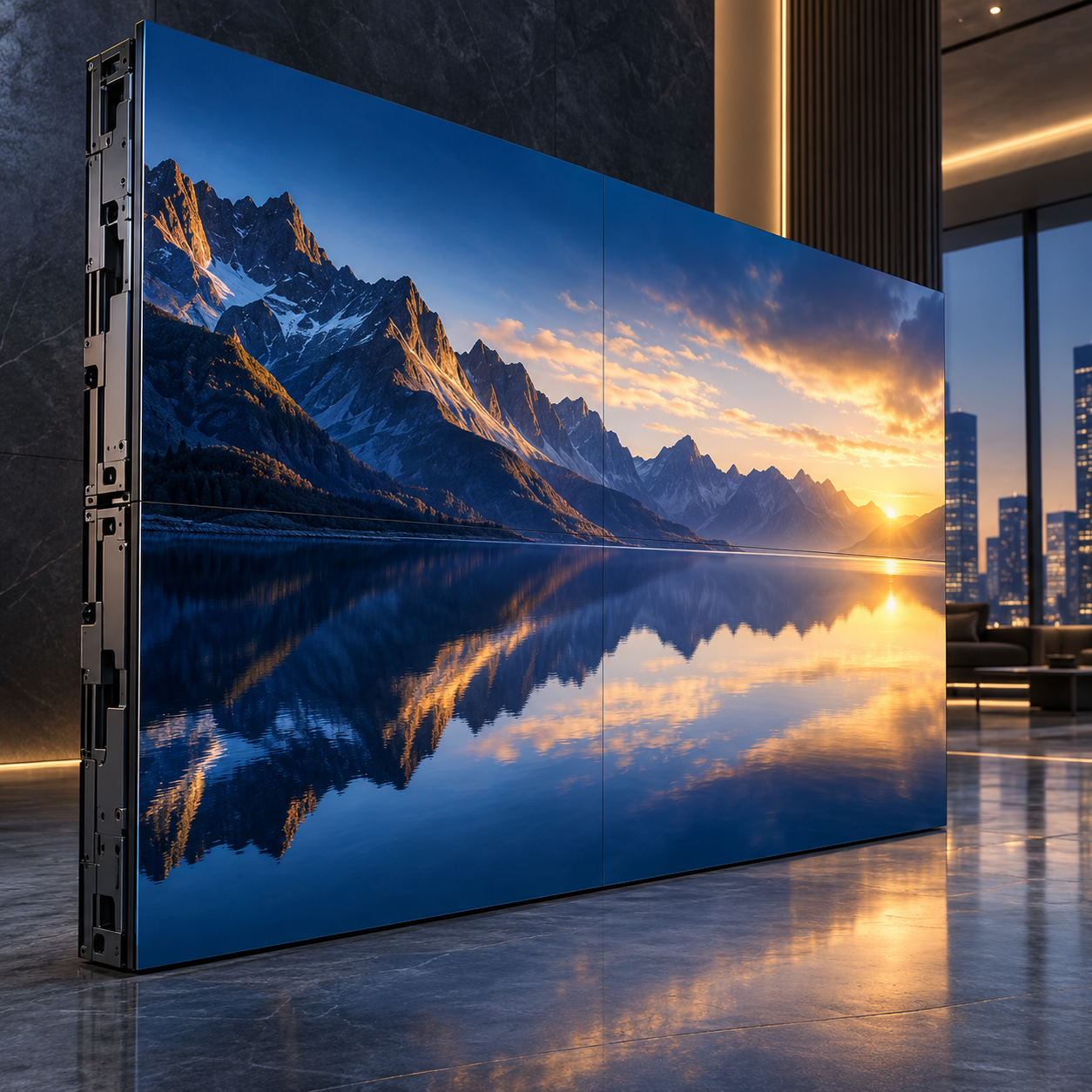

Contact UsDelivers high-resolution visuals with a seamless 16:9 aspect ratio, perfect for 4K/8K video walls.

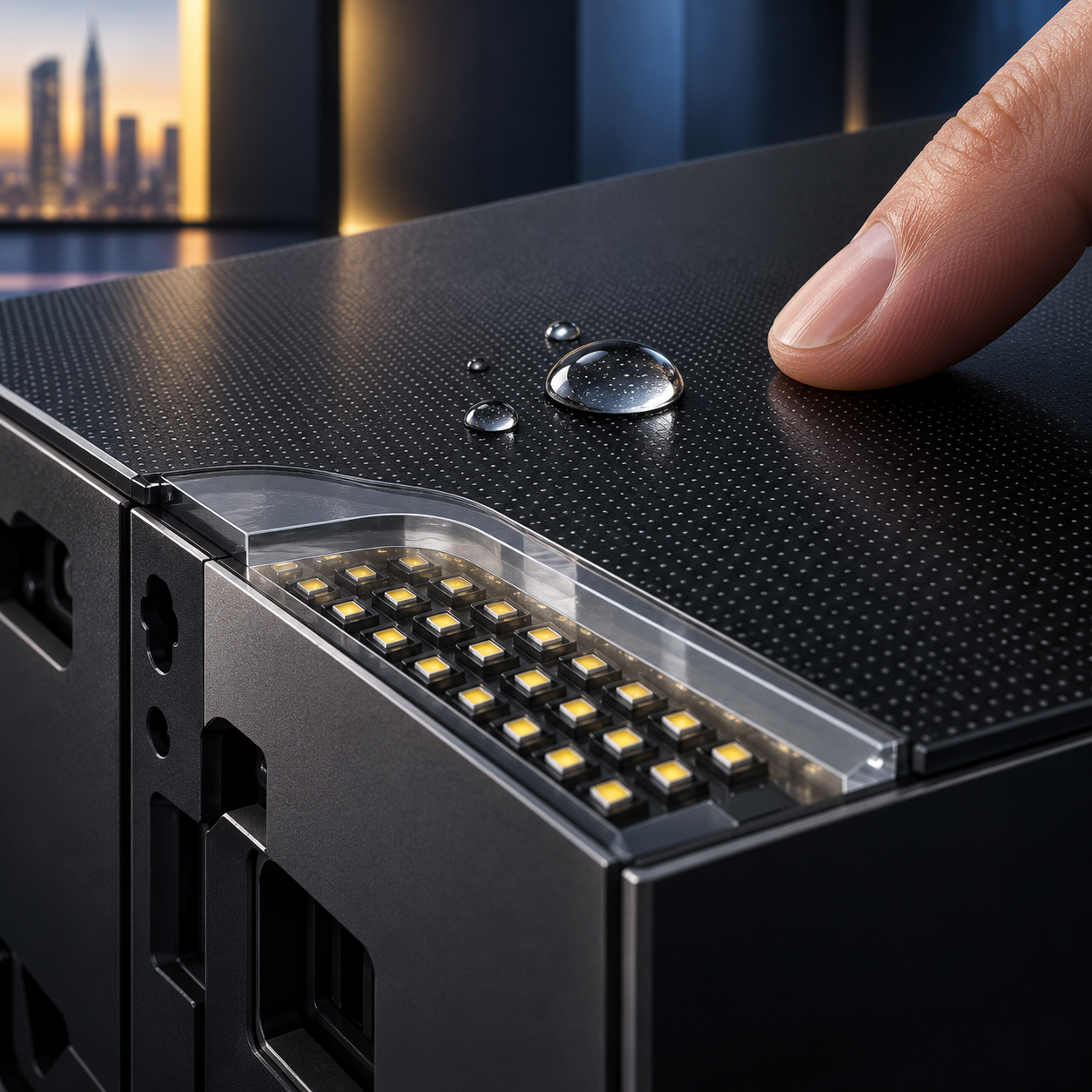

Enhanced durability with anti-collision protection and superior heat dissipation over traditional SMD LEDs.
Delivers vivid colors and deep blacks, ideal for corporate showrooms and control rooms.

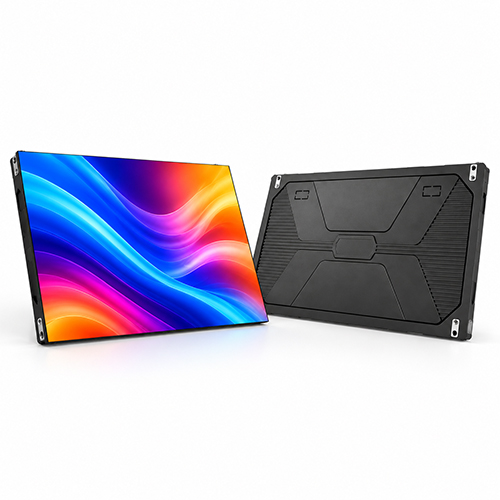

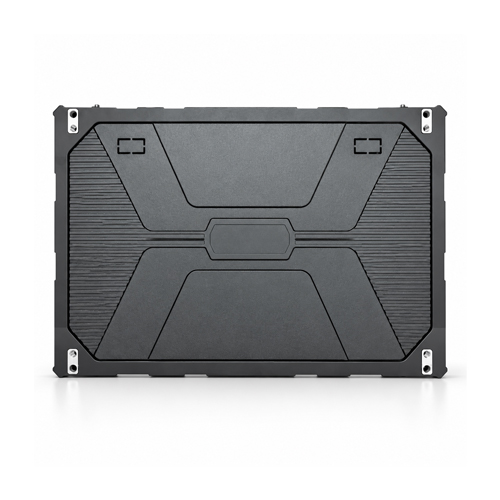

Die-cast aluminum frame with rugged back chassis, cooling fans, and quick-release latches for easy installation.
Constant-current driver ICs provide stable brightness while reducing power consumption.
Optimized thermal management with efficient heat dissipation for reliable long-term performance.
See why COB LED technology is the preferred choice for next-generation displays.
Chip-on-Board (COB) |
Surface Mounted Device (SMD) |
|
|---|---|---|
| Structure | Multiple LED chips packaged directly on the PCB, creating a seamless light-emitting surface. | Individual RGB LED packages mounted separately onto the PCB. |
| Pixel Pitch | Ultra-fine pitch from P0.9 to P1.5, ideal for 4K & 8K display walls. | Standard pitch from P2.5 to P10, suitable for general indoor & outdoor displays. |
| Durability | Anti-collision coating, moisture resistant, dust proof and significantly more durable. | Individual LEDs remain exposed, making the display more vulnerable to accidental damage. |
| Heat Dissipation | Excellent heat transfer through direct PCB bonding, ensuring longer operational life. | Conventional cooling with comparatively lower thermal efficiency. |
| Brightness & Contrast | Higher brightness, deeper blacks, improved contrast ratio and exceptional color uniformity. | Good brightness with standard contrast performance. |
| Power Consumption | Constant-current driver ICs provide stable brightness with lower energy consumption. | Higher power consumption under similar brightness conditions. |
| Maintenance | Robust design with reduced maintenance requirements and longer service life. | Requires more frequent maintenance due to exposed LED packages. |
| Best Application | Corporate boardrooms, command & control centers, TV studios, luxury showrooms, museums and premium indoor LED video walls. | Retail stores, advertising displays, event stages, shopping malls and outdoor signage. |

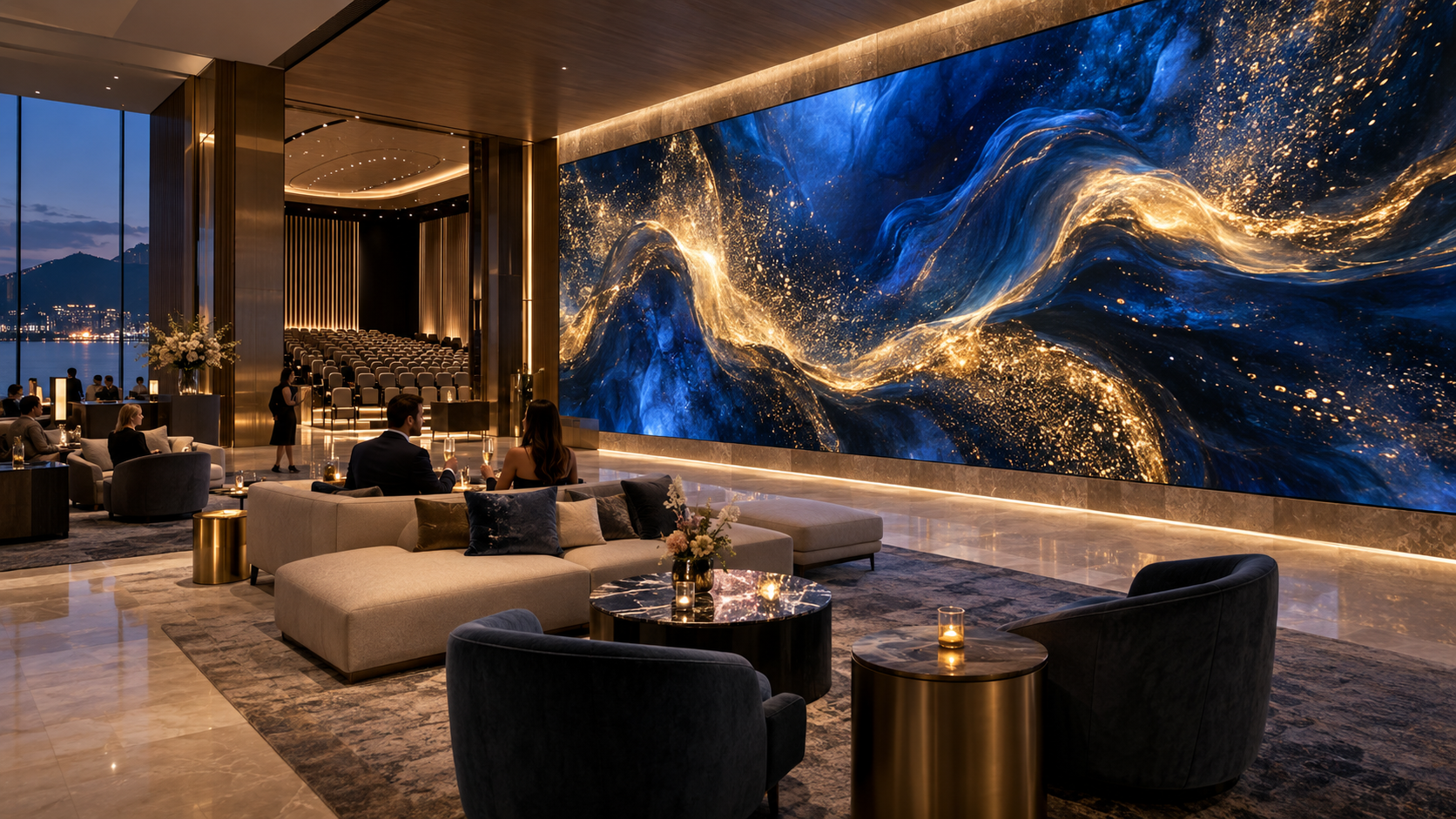

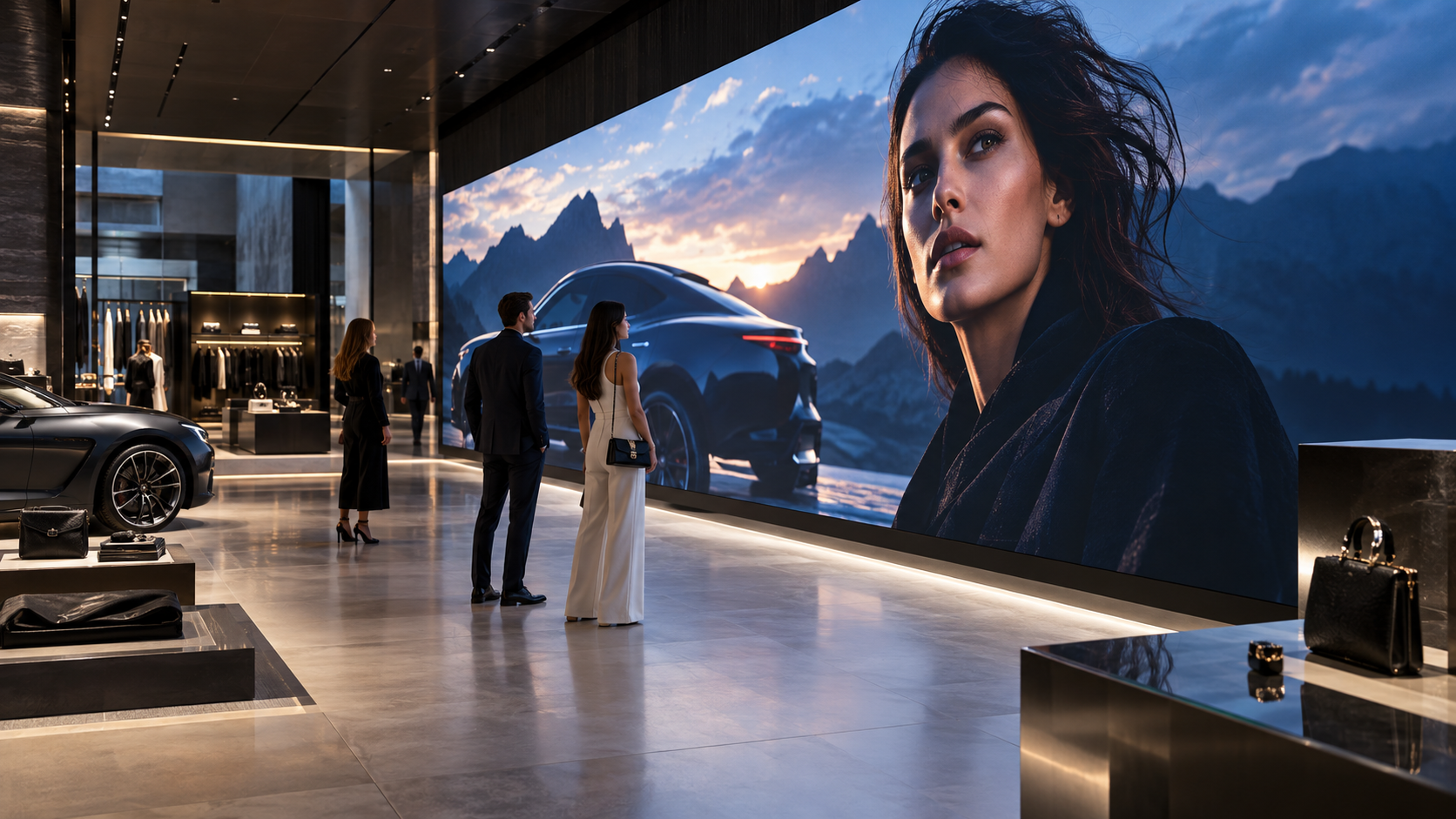

From corporate offices and retail environments to exhibitions and transportation hubs, the Zenith delivers exceptional visual communication with stunning clarity, seamless performance, and reliable operation. Designed for modern indoor applications, it creates engaging digital experiences that captivate audiences and enhance brand presence across every space.
Get Free Consultation
Boardrooms • Executive Meeting Rooms • Conference Rooms • Presentation Rooms

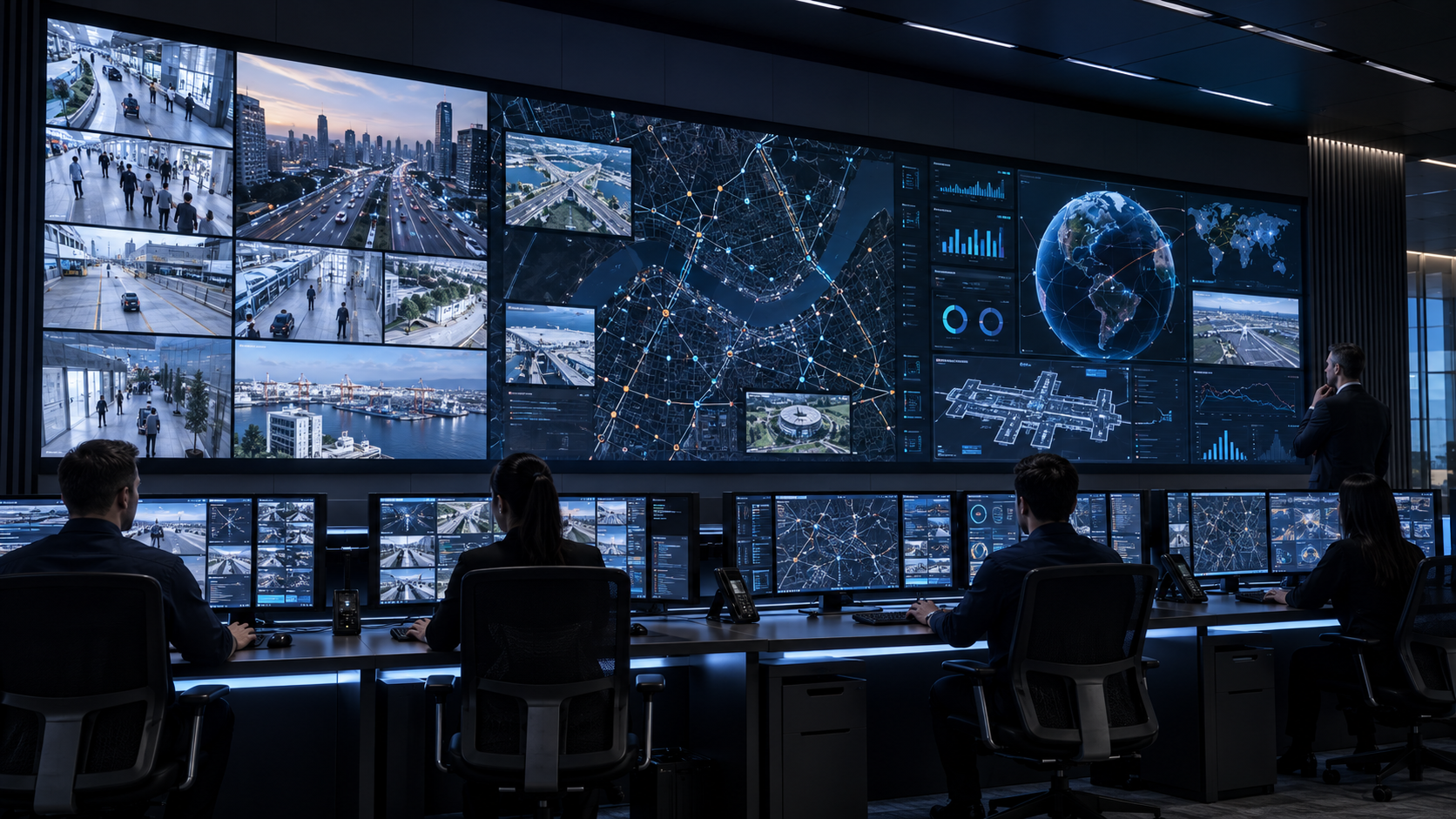

Command Centers • Security Operations Centers • Network Operations Centers • Control Rooms

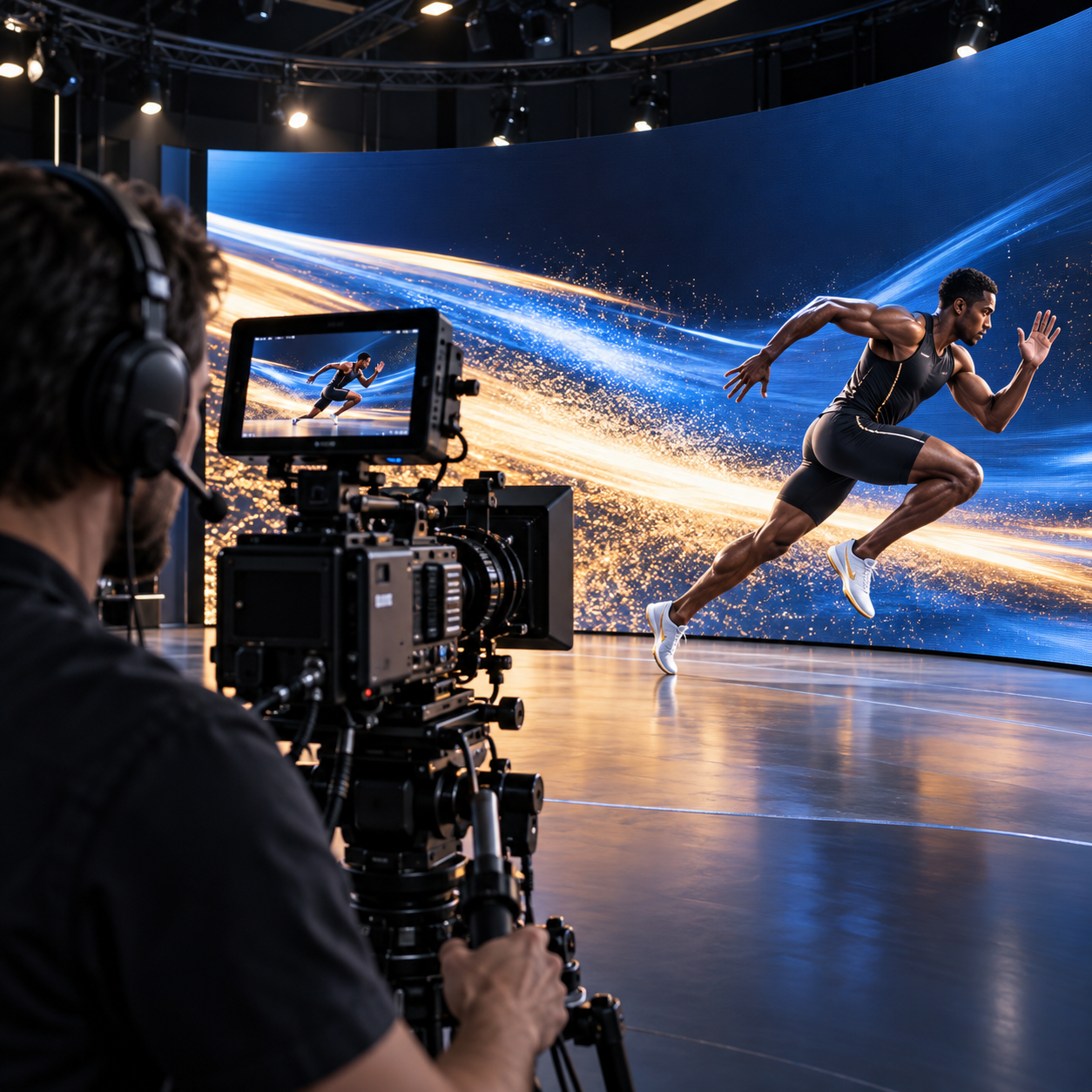

TV Studios • Newsrooms • Production Studios • Virtual Production • Corporate Studios
Brand Stories • Corporate Communication • Videos • Announcements • Live Data • Visual Experiences
Luxury Retail • Fashion • Automotive Showrooms • Experience Centers • Brand Stores

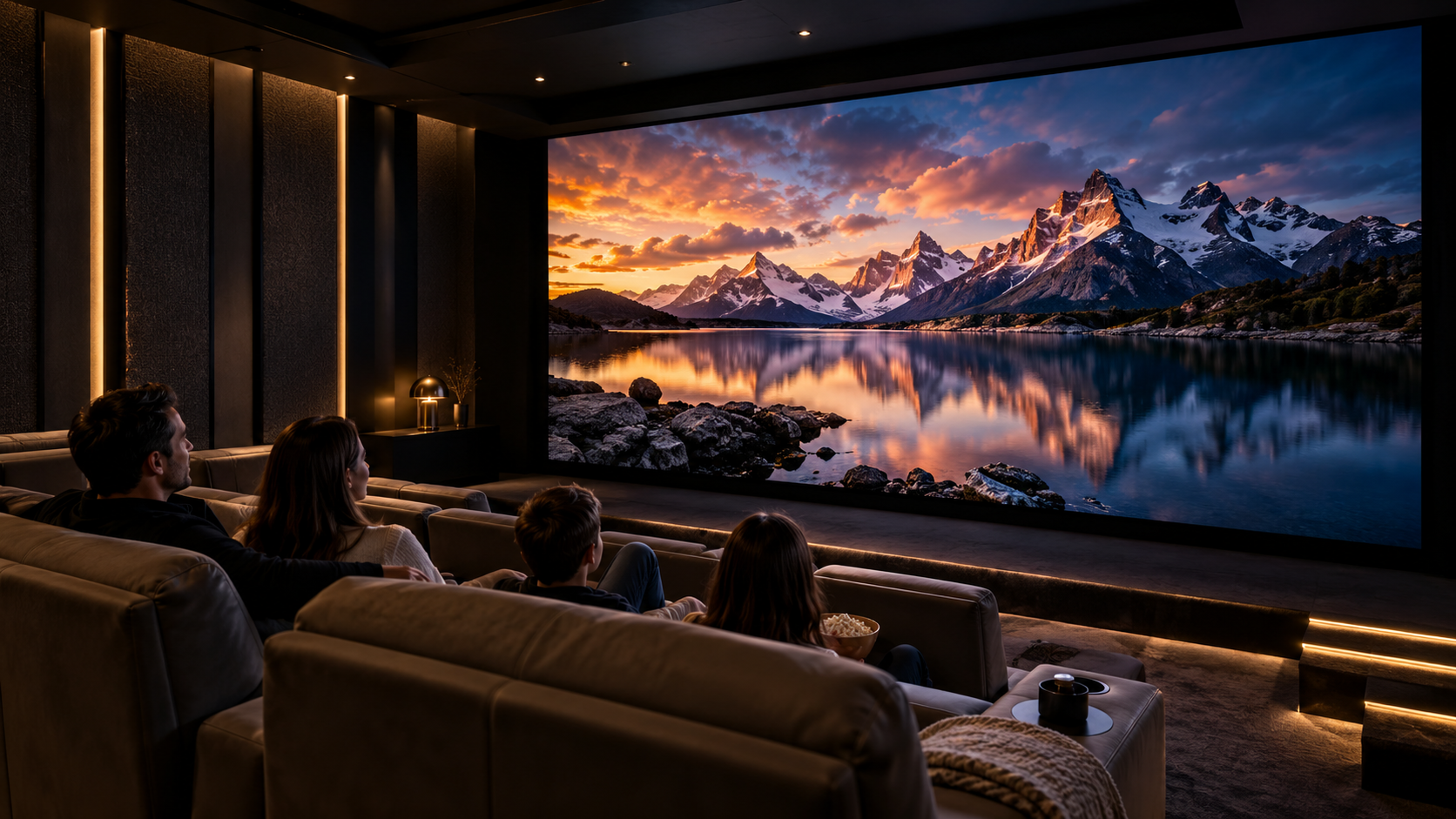

Luxury Home Theatres • Private Cinemas • Media Rooms • Gaming Rooms • Entertainment Lounges • Luxury Living Spaces

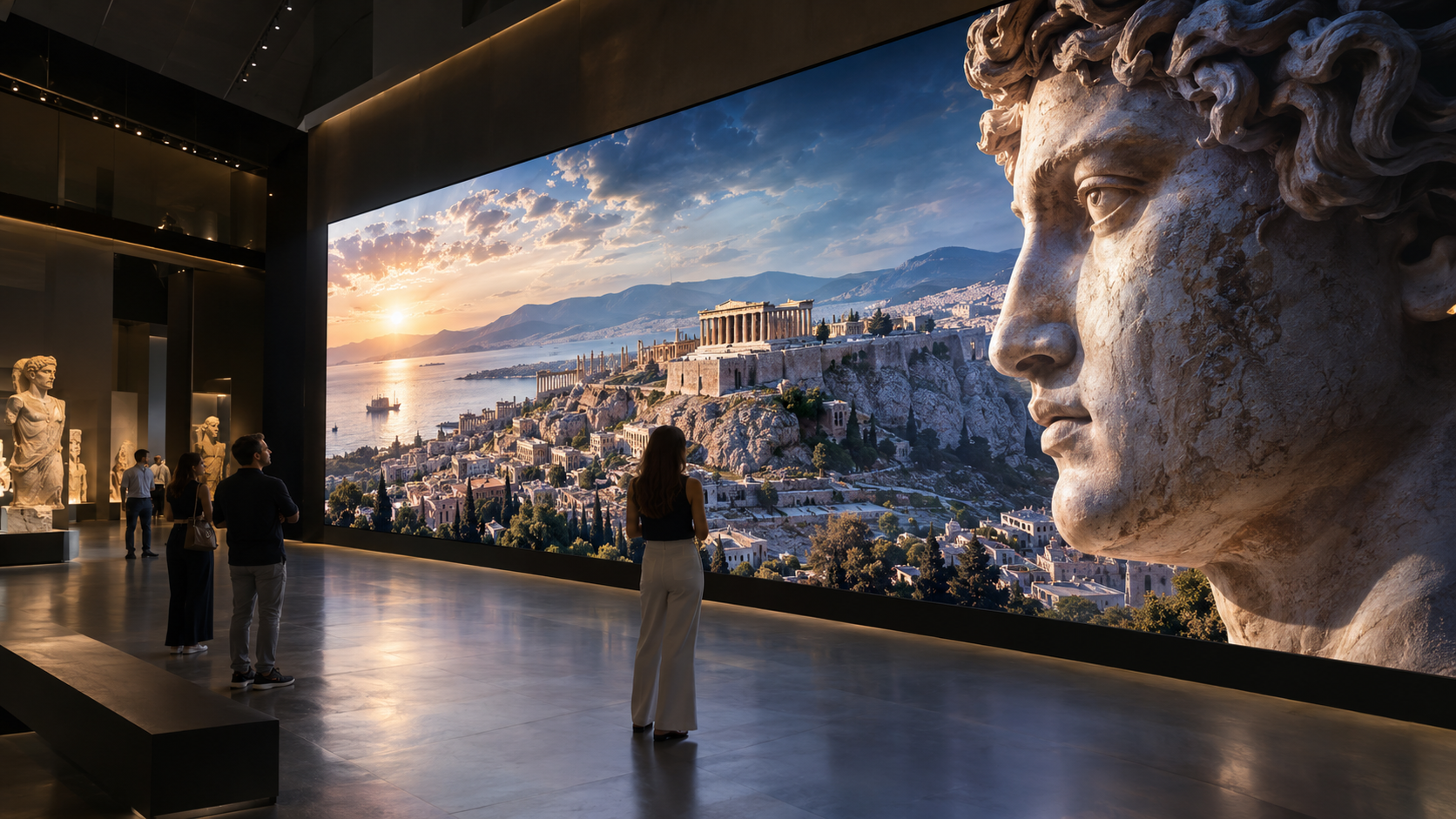

Immersive Storytelling • Interactive Experiences
Elegant Design • Seamless Integration
Luxury Living • Immersive Entertainment
| Pixel Pitch | P0.93 Indoor | P1.25 Indoor | P1.56 Indoor |
|---|---|---|---|
| Module Size(mm) | 150×168.75 | 150×168.75 | 150×168.75 |
| Module Resolution | 160×180 | 120×135 | 96×108 |
| Scan Mode | 54S | 60S | 54S |
| LED Configuration | COB | COB | COB |
| Brightness(nit) | ≥600 | ≥600 | ≥600 |
| Driving Method | Constant Current | Constant Current | Constant Current |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Grey Scale | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 |
| Module Input Voltage(V) | 4.5-5 | 4.5-5 | 4.5-5 |
| Module Max Current(A) | 1.2~1.5 | 1.2~1.5 | 1.2~1.5 |
| Max Power(W/m²) | 250~280 | 250~280 | 250~280 |
| Average Power(W/m²) | 50~90 | 50~90 | 50~90 |
| IP Level | IP42 | IP42 | IP42 |
| Input Voltage(V) | 110~220 | 110~220 | 110~220 |
| Display Weight | 4kg | 4kg | 4kg |
| Display Thickness | 29.2mm | 29.2mm | 29.2mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH |
| Certification | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS | FCC/CE/RoHS/BIS |
